TMBS150E SKF NEW originial Strong Back Bearing Puller TMBS 150E FREE ship DHL

$1,399.00

Easy bearing dismounting even in the tightest spaces

The SKF TMBS E strong back pullers facilitate dismounting of bearings in applications where the use of traditional jaw pullers is restricted due to lack of space or where the application demands a long reach. TMBS 100E and the TMBS 150E bearing extractors are equipped with a hydraulic spindle, which allows for effortless application of force up to 100 kN (11.2 ton US). The TMBS 50E is equipped with a mechanical spindle for force generation.

  • Special separator design allows the puller to be easily inserted between the bearing and the shoulder on the shaft

  • The spring-loaded centre point of the hydraulic spindle allows easy puller centring minimizing the risk of shaft damage

  • The firm grip behind the bearing’s inner ring reduces the force required to dismount the bearing

  • The hydraulic spindle is equipped with a safety valve, which minimises the risk of puller overload

  • A hydraulic spindle stroke of 80 mm (3.1 in.) helps facilitate dismounting in one operation

  • SKF TMBS 50E is equipped with a mechanical spindle for force generation

  • SKF TMBS 100E and the SKF TMBS 150E are equipped with a hydraulic spindle, which allows for easy application of force up to 100 kN (11.2 US ton)

  • Supplied with hydraulic spindle extension pieces to allow quick adaptation to pulling length

  • SKF TMBS 100E and SKF TMBS 150E are supplied with extension rods to allow quick adaptation to pulling lengths up to 816 mm (32.1 in.)



TMBS 150E

SKF Strong Back Pullers TMBS 150E
The SKF TMBS 100E strong back puller facilitates dismounting of bearings in applications where the use of traditional jaw pullers is restricted due to lack of space or when the application requires a long reach. The puller is operated with a hydraulic spindle for effortless dismounting up to 100 kN (11.2 US ton). A special separator design is used that can be easily inserted between the bearing and the shoulder on the shaft.

  • Easily separator placement between bearing and shoulder on the shaft

  • Especially suitable for larger shaft diameter

  • Spring-loaded centre point of spindle allows easy puller centring and minimises the risk of shaft damage

  • Hydraulic spindle with safety valve for safe and effortless dismounting

  • Firm grip behind the bearing's inner ring reduces the force required to dismount the bearing

  • Quick adaptation to required pulling length with 2x hydraulic spindle extension pieces and extension rods for pullings lengths up to 816 mm (32.1 in.)

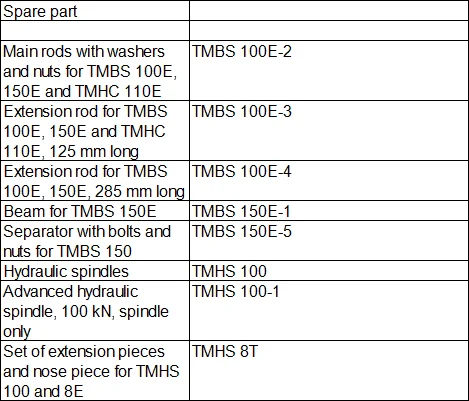

Technical data
Strong Back Pullers TMBS 150E easily inserted between the bearing and the shoulder on the shaft
